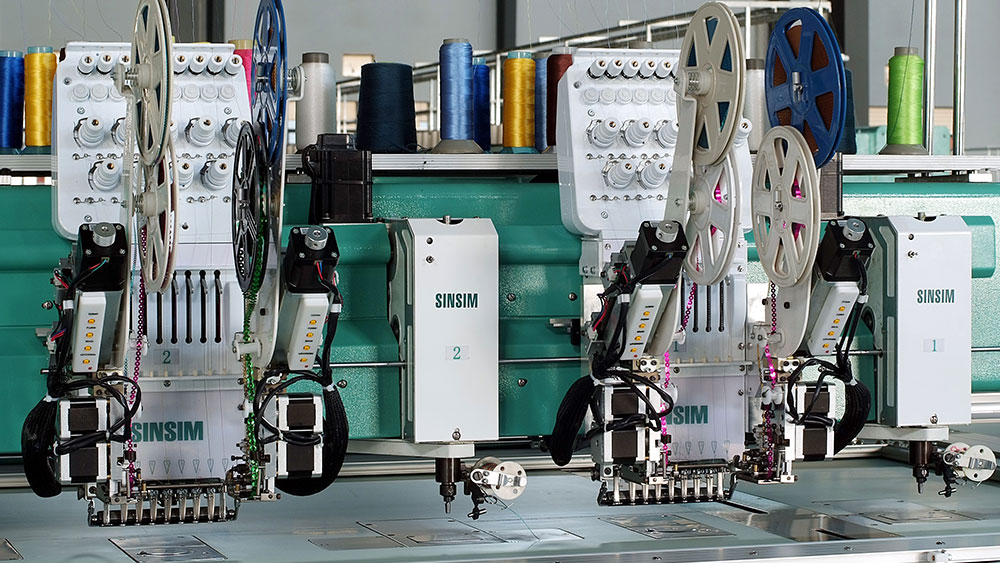

1、Flat Head can choose Double Cam Double receptor, Double crank head structure.
2、High Precision Integrated structure machine body processing by large Milling machine.
3、High proforma industrial grade electric control system.
4、High Precision suspension embroidery frame and C type Frame Structure option.
5、All-Round oil lubrication system .
6、All servo motor driver, with High strength import belt.
7、High precision customization gear type driver box .
8、High performance upper thread holding system .
9、Sequin,cording,beads, laser cutting , boring device enable you to choose flexibly according head distance .
10、Flexible selection of inner cam and external cam of towel heads according to application scenarios .
11、Automatic change of 12 colors of chenille head.
12、Equipped with a temperature-controlled air-cooling system and automatic cleaning structure.
| Model | Needles No. （Flat) | Needles No. （chenille) | Heads No. (Flat) | Head No. (Chenille) | Head interval（mm） | Emb.Area （mm） | Inner Frame Size （mm） | Machine Size（mm） |
| SINSIM-MT(9+6)(4+4) | 9 | 6 | 4 | 4 | 550 | 110*900 | 3240*940 | 5720*2357 |
| SINSIM-T612 | 0 | 6 | 0 | 12 | 500 | 550*900 | 6130*940 | 7650*2357 |
| SINSIM-MT(9+6)(12+12) | 9 | 6 | 12 | 12 | 600 | 1200*1500 | 7880*1660 | 10160*3797 |
| SINSIM-T614 | 0 | 6 | 0 | 14 | 840 | 840*1750 | 11840*1790 | 13460*4057 |
| SINSIM-T615 | 0 | 6 | 0 | 15 | 500 | 550*1650 | 7630*1690 | 9150*3857 |
| SINSIM-MT(6+6)(15+15) | 6 | 6 | 15 | 15 | 500 | 110*1300 | 8410*1340 | 10840*3157 |
| SINSIM-MT(12+9)(20+20) | 12 | 9 | 20 | 20 | 500 | 600*900 | 10410*940 | 12780*2377 |
| SINSIM-T624 | 0 | 6 | 0 | 24 | 450 | 600*1350 | 11030*1390 | 12580*3257 |
| SINSIM-MT(9+9)(24+24) | 9 | 9 | 24 | 24 | 500 | 1000*900 | 12810*940 | 15280*2357 |
| SINSIM-MT(9+6)(26+26) | 9 | 6 | 26 | 26 | 450 | 750*850 | 12090*900 | 14160*2277 |
| SINSIM-T628 | 0 | 6 | 0 | 28 | 330 | 750*1330 | 9740*1370 | 11690*3217 |
| SINSIM-T632 | 0 | 6 | 0 | 32 | 300 | 650*1500 | 10030*1540 | 11780*3557 |
| SINSIM-MT(6+4)(32+32) | 6 | 4 | 32 | 32 | 330 | 700*1600 | 11260*1640 | 13380*3777 |
| SINSIM-T639 | 0 | 6 | 0 | 39 | 240 | 750*1750 | 9950*1790 | 11800*4027 |
